VisualVM for Optimization and Monitoring¶
Profiling Tools¶
A profiling tool is an optimization tool which is used to determine resource problems about components of the sofware such as which components of software consume the most resources, which functions run the longest, and which processes cause bottlenecks.
Profiling tools focus primarily on performance analysis and memory management, because the primary bottleneck resources in a software systems are the CPU and memory. So in generalprofiling tools generally do not focus on resources such as disk or network.
Performance and memory analysis are performed to detect and resolve various errors or to optimize problematic parts of the code in terms of processor and memory usage. All profiling tools work for these purposes, however, they vary according to the characteristics and needs of the programming language or platform.
Performance (CPU) Analysis¶
Performance analysis is the whole analysis process based on the running time, such as the triggering order of functions within the application, the number of triggers, and the time spent in these functions. It measures the speed of the application and determine its efficiency in terms of processing load.
Memory Analaysis¶
Memory Analysis is the analysis process carried out to measure the memory usage of the application, examine the data held in memory, and detect unnecessary memory usage or memory leaks.
What is VisualVM?¶
Java applications run on a virtual machine called the “Java Virtual Machine” (JVM), which provides a platform-independent runtime environment for Java programs. It provides many tools for analyzing and using applications running on it.
VisualVM is a profiling tool used to monitor and analyze applications running on the JVM. Structurally, it offers a user-friendly interface with all the profiling tools offered by the JVM. Since it offers some limited features in terms of monitoring, it can also be used as a monitoring tool when needed.
Main Functionalities of VisualVM¶
It is possible to perform the following operations on VisualVM:
Monitoring application’s CPU and memory usage data in real time
Monitoring threads on the application and their status
Analysing which class functions consume more CPU
Take a dump of the class instances in memory
Analyzing memory/heap dumps
Trigger the Garbage Collector operation or watch the moments when it is automatically triggered
Alternative Tools¶
As an alternative to VisualVM, YourKit is one of the most common and professional options. Other solutions such as JProfiler or Java Mission Control can also be considered as alternatives.
How to run VisualVM?¶
First, you should download VisualVM from https://visualvm.github.io/. After opening the compressed folder you downloaded, you can run the binvisalvm.exe file in this folder. For other operating systems, you need to follow the necessary instructions according to the structure of your system.

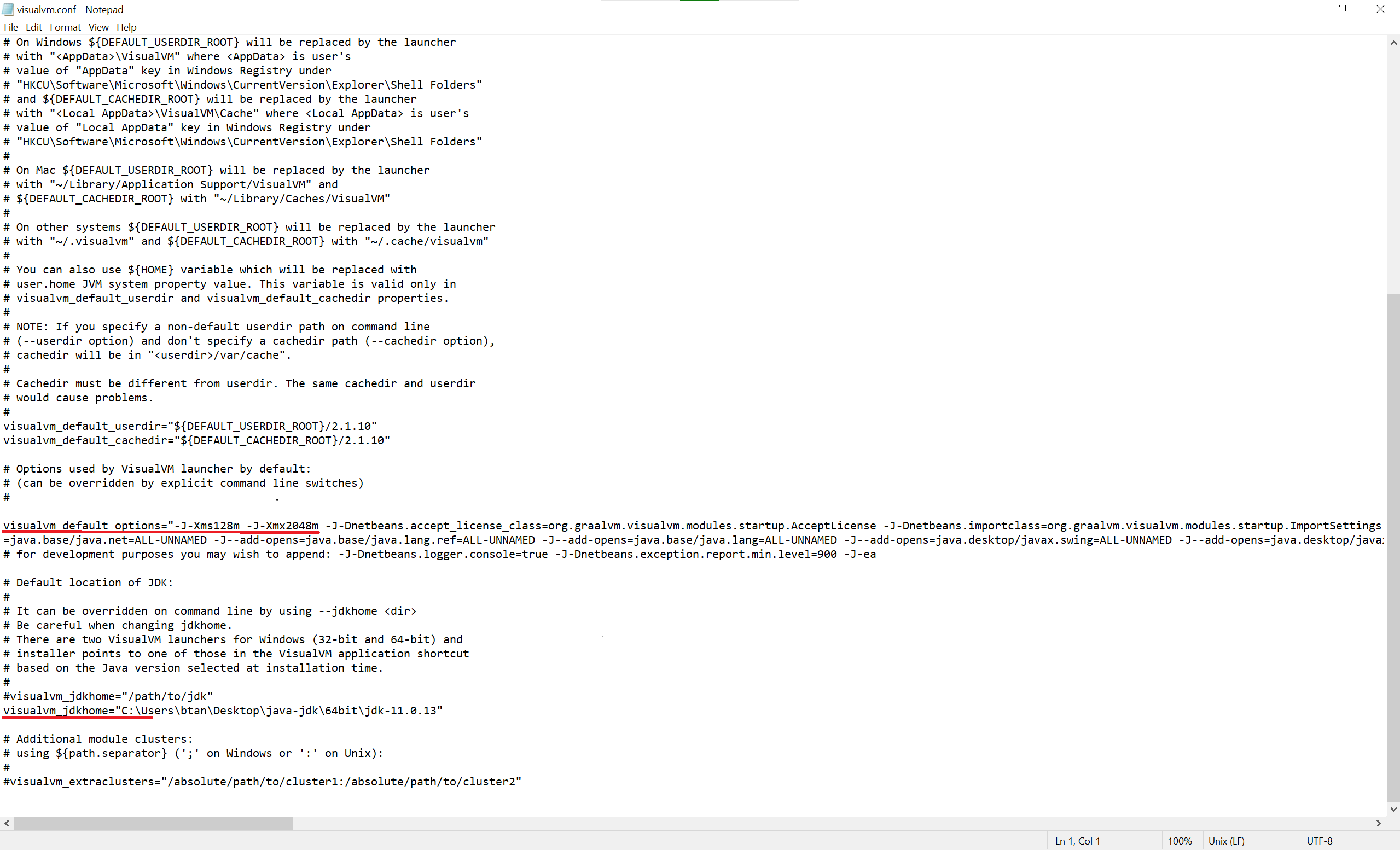

Depending on the purpose of the analysis, when starting VisualVM, it may be necessary to configure the memory parameters and the JDK path where VisualVM will run. To do this, you should edit the relevant parameters in the \etc\visualvm.conf file according to your needs. The most important parameters in this configuration file are visualvm_default_options and visualvm_jdkhome. For other parameters, please refer to the VisualVM documentation.
For the same purpose you can also enter -J<jvm_option> and –jdkhome parameters to the application while running VisualVM without changing the configuration file. Further, many operations can be performed via the interface with the VisualVM command line tools, and thus processes can be automated. You can examine the other VisualVM parameters by running the visualvm –help command in the folder where the VisualVM application is located.

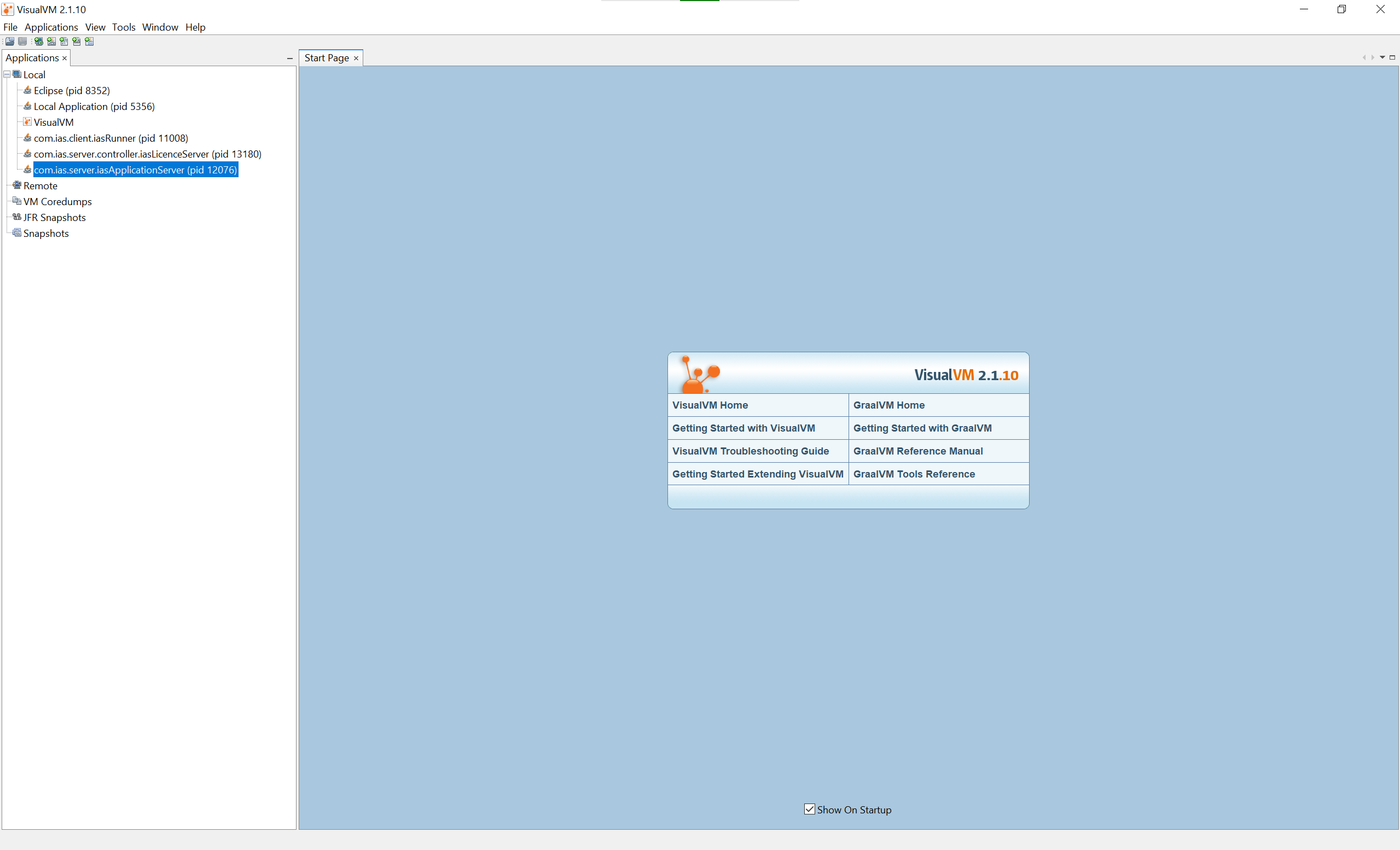

The screen that appears when the application is running has two basic components. The first of these is the left section, which shows the running JVMs, snapshots or heapdumps. The other is the second section, which shows the status of the connected JVM or the operations to be performed on this JVM. When the application is first opened, the splash screen or a blank screen will appear because there is no connected JVM yet.
It is also possible to connect to a remote JVM via VisualVM. In this document, we will focus only on operating on a locally running JVM.
How to connect to the JVM to be examined?¶
In order to analyze your application, you must first connect to a JVM via VisualVM. To do this, you need to double-click on the application you want to analyze by selecting it from the local JVMs on the first left side of VisualVM.

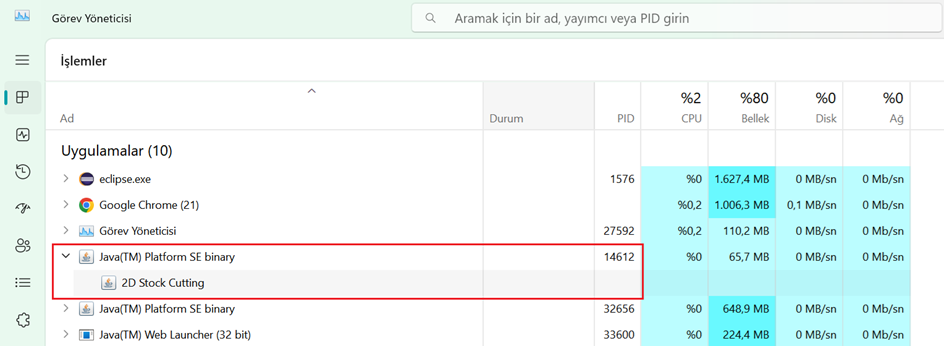

If multiple instances of the same application are running on the operating system, you must ensure that you are connecting to the correct JVM. To do this, you need to know the name or process ID (pid) of your application. You can find this in the task manager. If you cannot see the PID of your application in the task manager, you can also make this column visible and access this data.

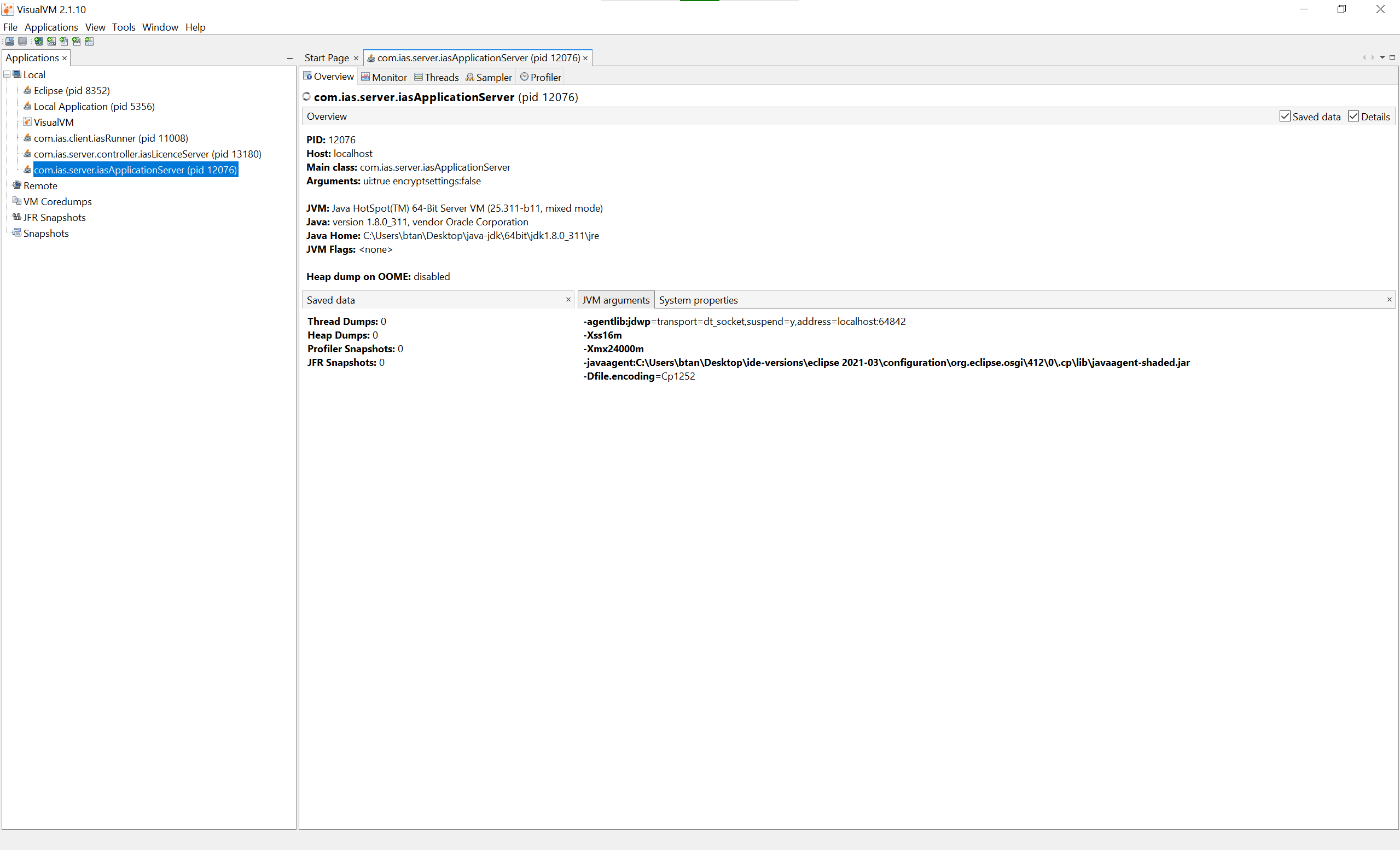

After connecting to the correct JVM instance, a screen opens on the right side that provides basic information for that JVM. In the data here, it is possible to see the configuration that will affect the system as a whole, such as java home, JVM version, JVM arguments and System properties.
The critical -Xms and -Xmx parameters are also listed here within the JVM Parameters. This screen can be used to check whether all critical parameters are reflected in the JVM as planned.
How to monitor CPU and Memory Usage?¶

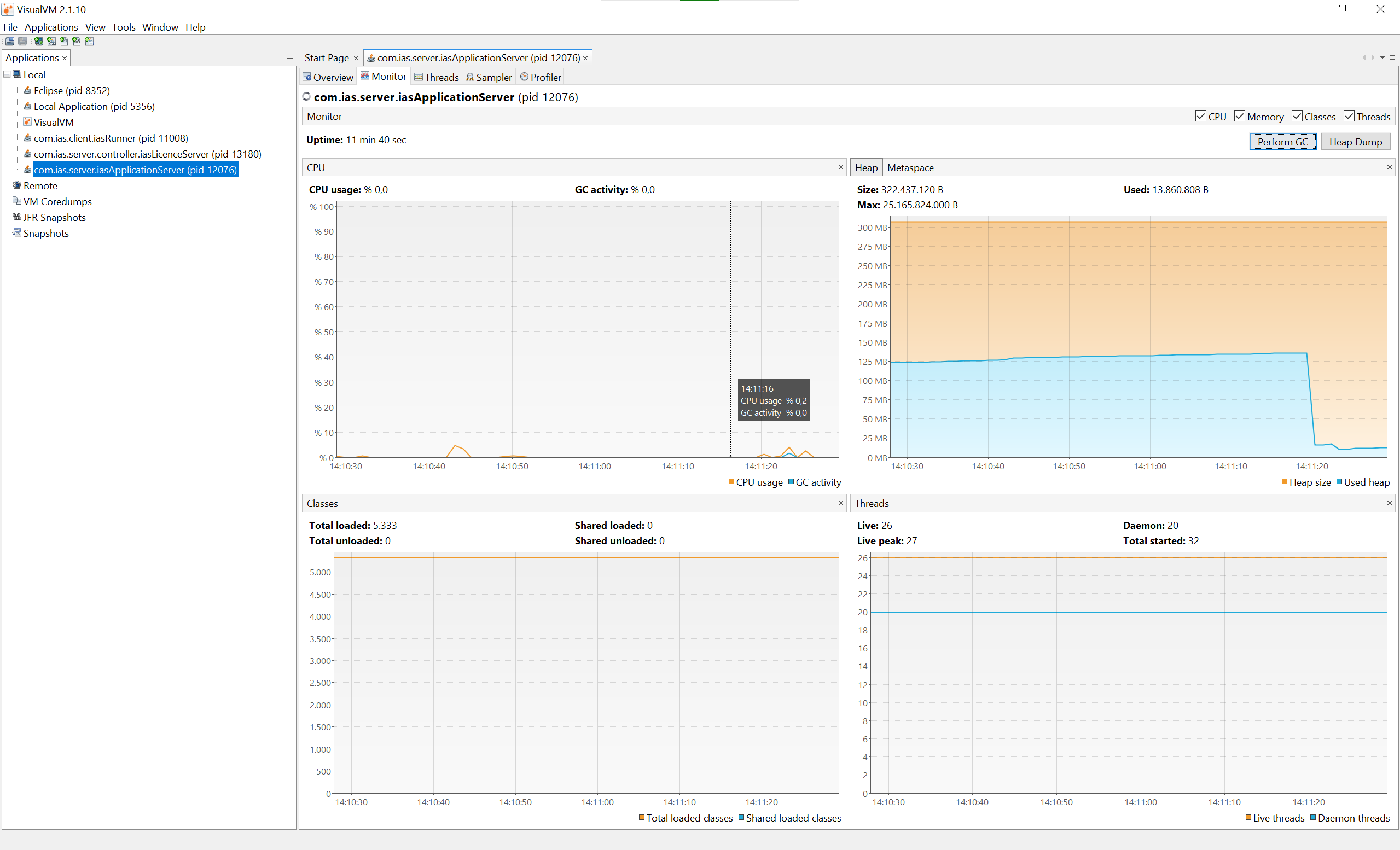

After connecting to the JVM, if you switch from Overview to the Monitor tab, you can monitor some cpu and memory info about connected JVM. There are some simple and useful information on this tab such as JVM uptime, CPU and memory consumption instantly via graphical interfaces. In this screen, it is also possible to graphically monitor the number of threads and the number of loaded classes in the system at that moment.
Additionly, by triggering the Garbage Collector on the Monitor tab, unused class instances that are in memory can be cleared from memory. This process is an operation carried out by the JVM under normal conditions. However, when analyzing situations that are temporarily used for a process but are expected to be released later on the application, the Garbage Collector may need to be run manually. In other words, this tool can be used when investigating possible memory leak problems.
What is HeapDump?¶
One of the operations that can be done via the Monitor tab is to take a Heap Dump. Heap is the memory area allocated to an application during its operation and used dynamically by the application. When the Heap Dump button is pressed, all classes and their contents in the heap memory area are written to a file. This data includes almost everything currently in memory, and various analyses can be conducted on this data according to the target.

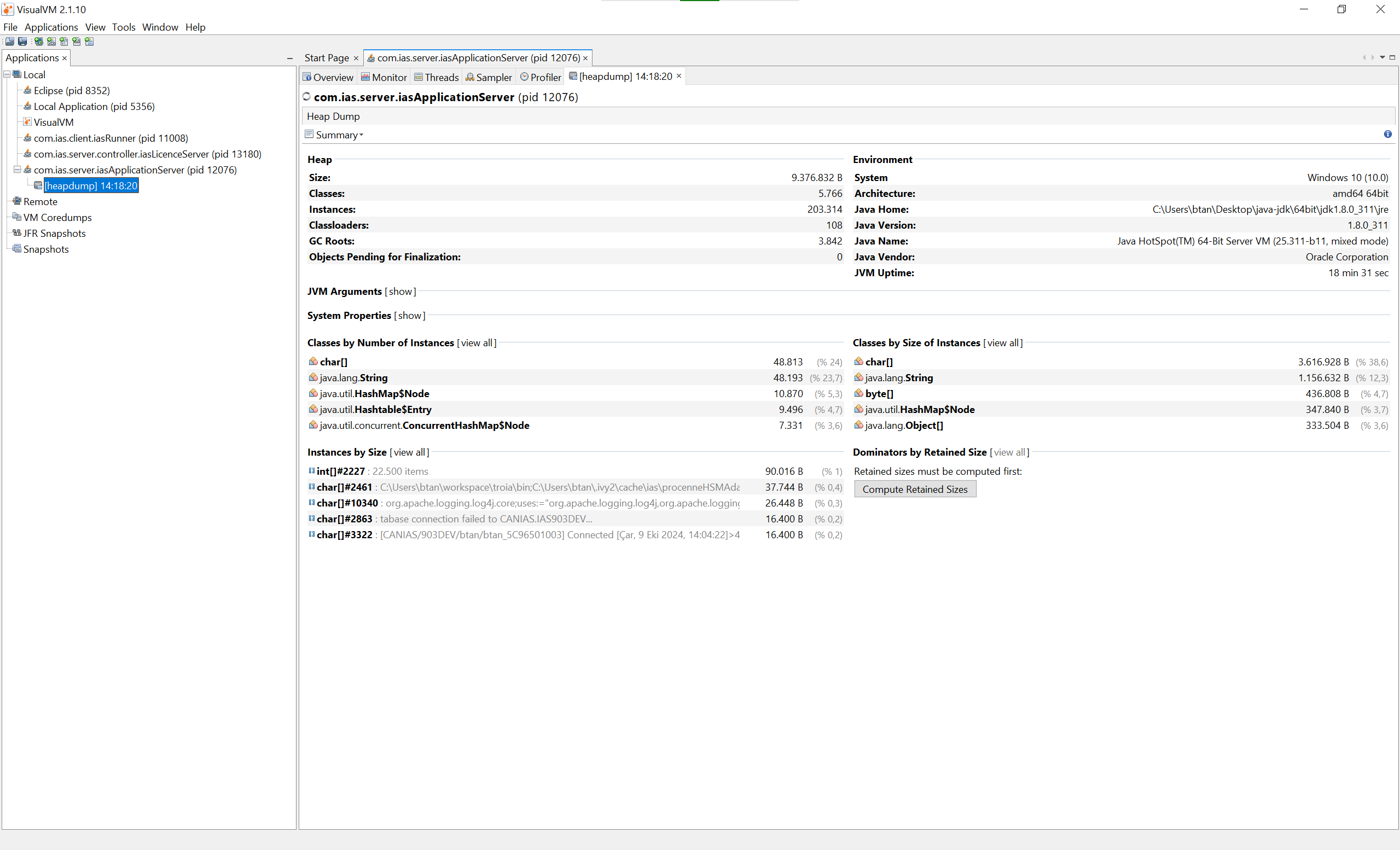

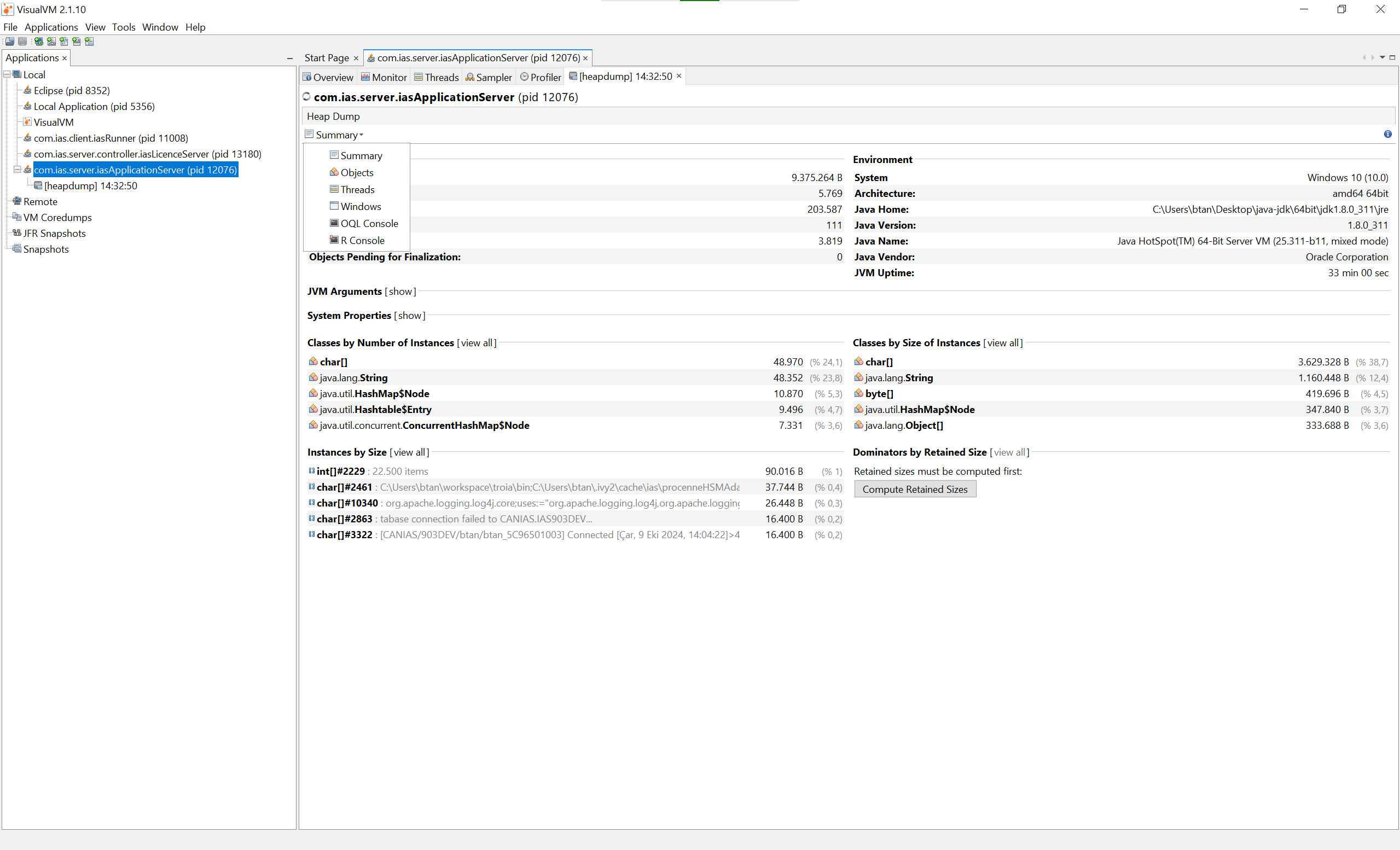

When you create a heap dump, this heap dump appears with the time information under the server you are connected to. When you double-click it and open it, system firstly opens a summary of the data collected about the memory and application at the time the heap dump was taken.

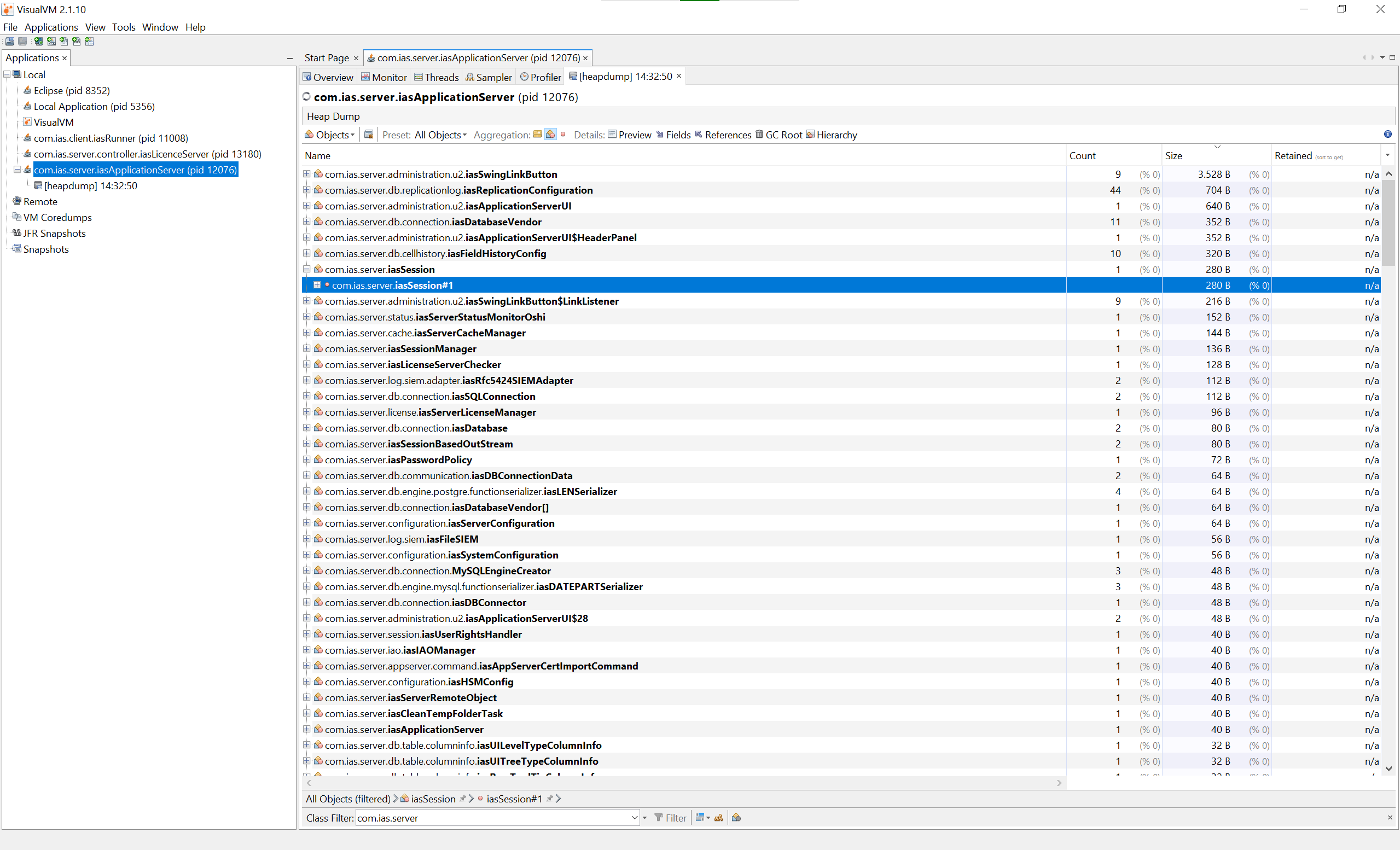

On this summary screen, if you select the “objects” option, you can see a list of all objects currently in memory. On this Objects screen, you can view the objects that use the most space in memory or all objects. Using the filters at the bottom of the page, the results can be filtered based on class or package name.
On this screen, you can view object count, consumed memory space, subfields of objects for each sample and the values of these objects and their fields. In this context, it is important to note that a heap dump data taken from a live environment poses information security risks.
When the heap dump is generated and examined, you will realize that the “retained size” information is not calculated at the first stage. Retained size refers to the amount of memory occupied by an object and its references, considering its relationships with other objects in the memory heap. In other words, when an object is deleted from memory, it determines whether all objects that directly or indirectly reference this object will also be deleted from memory.
Calculating “Retained Size” is a long and costly process and is not calculated directly because it is not needed in every case. If you need this data in your analysis, you can calculate this data using the heap dump summary option and then continue your analysis process by switching to the objects tab.
You can export and store your heap dump files to make comparative analysis between different heap dump files taken different times.
What is ThreadDump?¶
A thread is the smallest unit of execution that can run in parallel in a program. A program can perform multiple operations simultaneously using multiple threads. Threads share the same memory space allocated to the process they are attached to, making it easier and faster to exchange data.

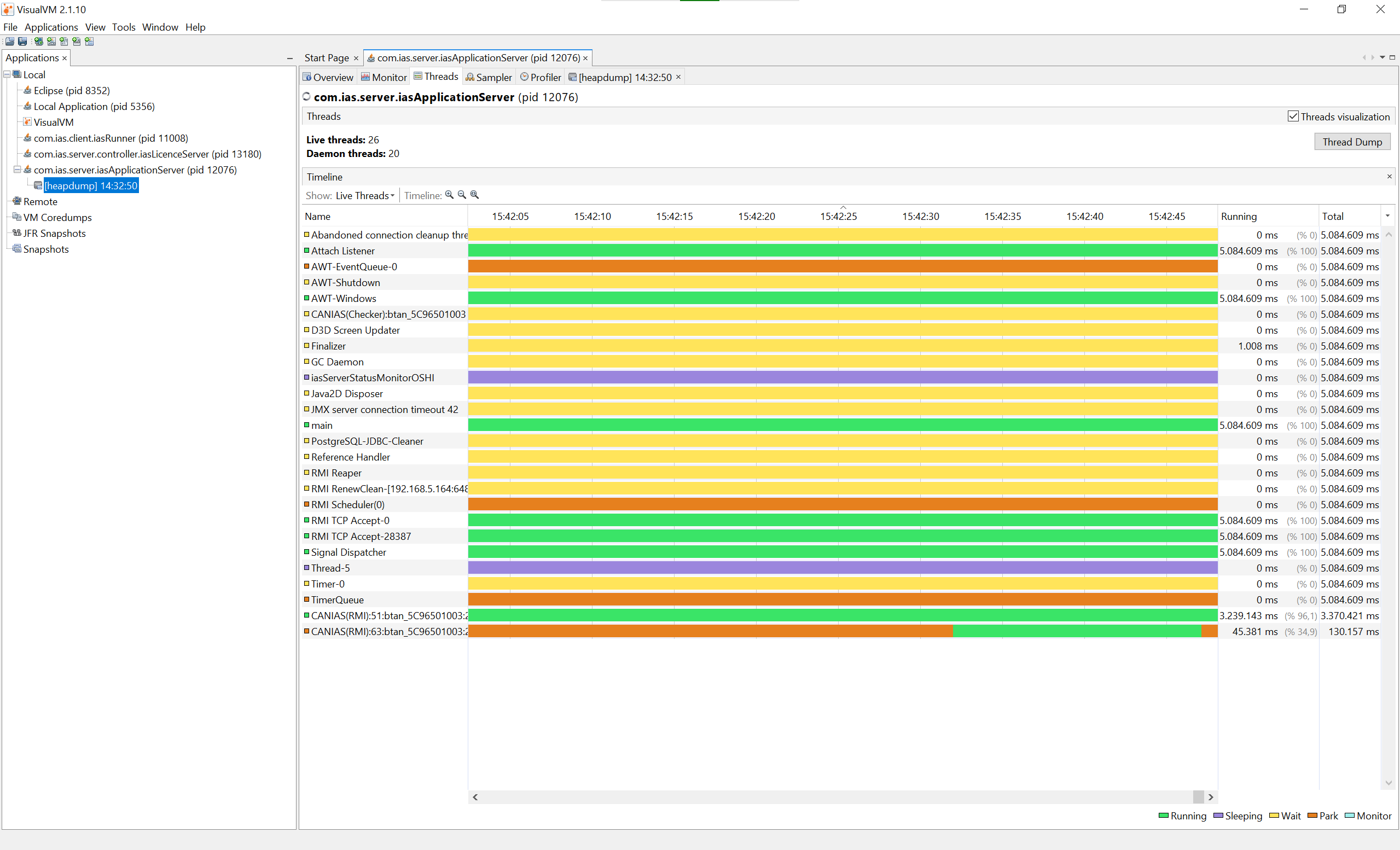

After connecting to a JVM on VisualVM, the threads in the application and their current status can be monitored in the “Threads” tab. Threads can be listed by filtering them according to their running status. Again, in this tab, thread dumps can be taken and the threads on the JVM can be reported instantly. The thread dumps taken will be listed under this link. These files can be saved differently and used in comparative analyses later.

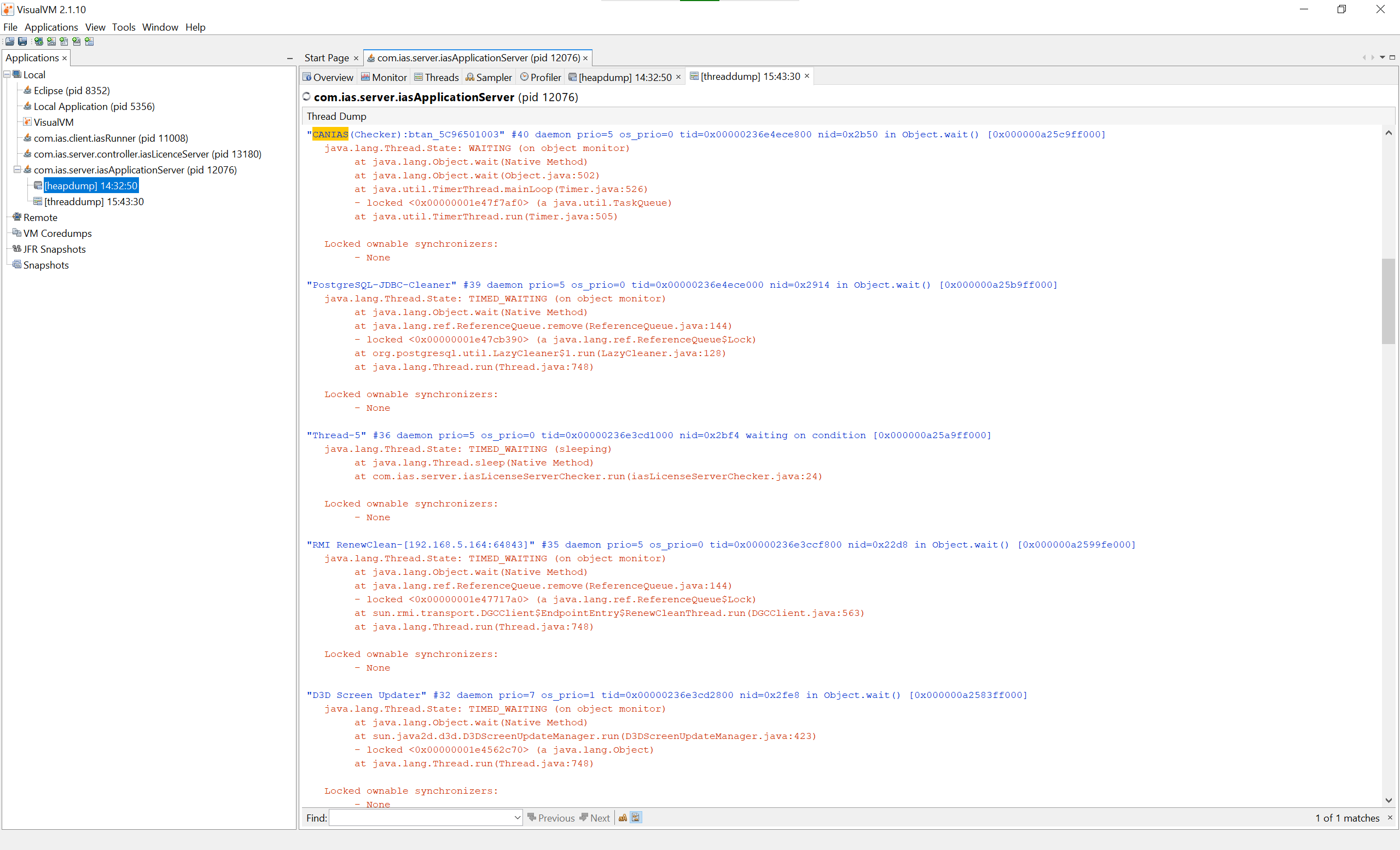

Thread dump is the data used to examine the current running state of an application. Especially in multi-threaded applications, thread dump shows what each thread is doing at a time and which resources it is accessing. When the application freezes or slows down unexpectedly, developers or system administrators can analyze this dump to identify problems. The thread dump contains important information such as the state of the thread and the call stack information of the currently executing code.
On the TROIA Application Server, each user’s instant operations are executed as a separate thread. In this context, threads starting with CANIAS(rmi) are user operations, and threads starting with CANIAS(checker) are threads opened to monitor user sessions.
Sampling¶

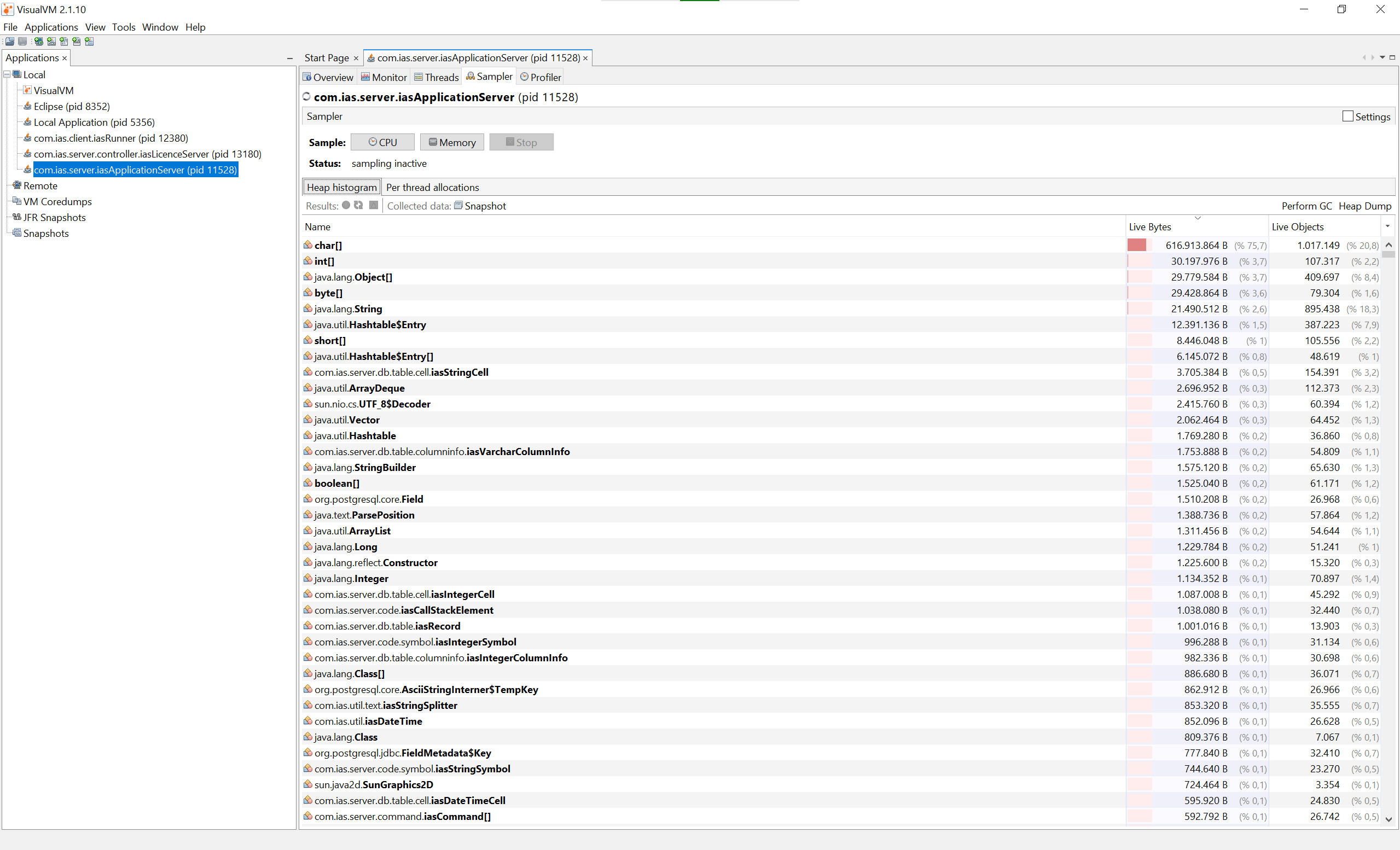

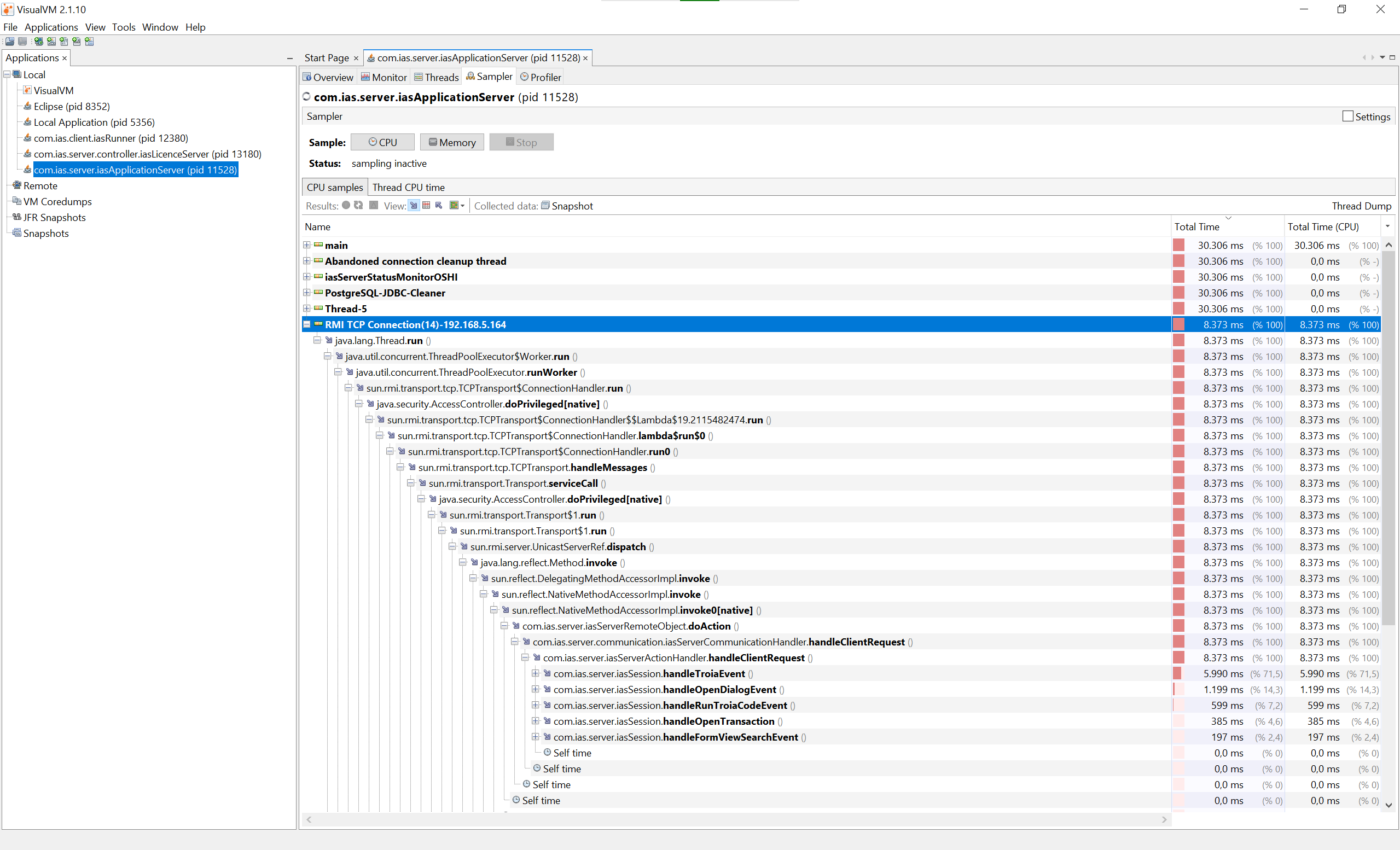

It is possible to perform performance or memory analysis by performing “CPU Sampling” and “Memory Sampling” on VisualVM. To do this, you must open sampling operation for a certain time interval in the “Sampling” tab of VisualVM. When the sampling process is completed, it is possible to see which processes were executed during the sampling interval or which class instances are currently in memory.
Sampling adds relatively less load to the currently running system because it is done by reading data from the JVM at certain intervals. It can be useful for certain scale analyses, such as monitoring the Garbage Collector effect or seeing the number of objects in memory, but sampling may be insufficient to detect some problems.
Additionally, in the Sampling tab, you can take snapshots at a moment in the sampling process to compare changes step by step. It is also possible to take a heap dump, filter the snapshots or sampling data, etc. from this screen.
How to Perform Profiling?¶
Profiling collects data on CPU and memory usage in more detail and continuously, providing the necessary data for optimizing the application and correcting possible errors. In comparison to the sampling process, while data is collected at certain intervals in the sampling process, this data is collected continuously. Therefore collected data is more detailed and larger in the profiling process.
CPU Profiling¶

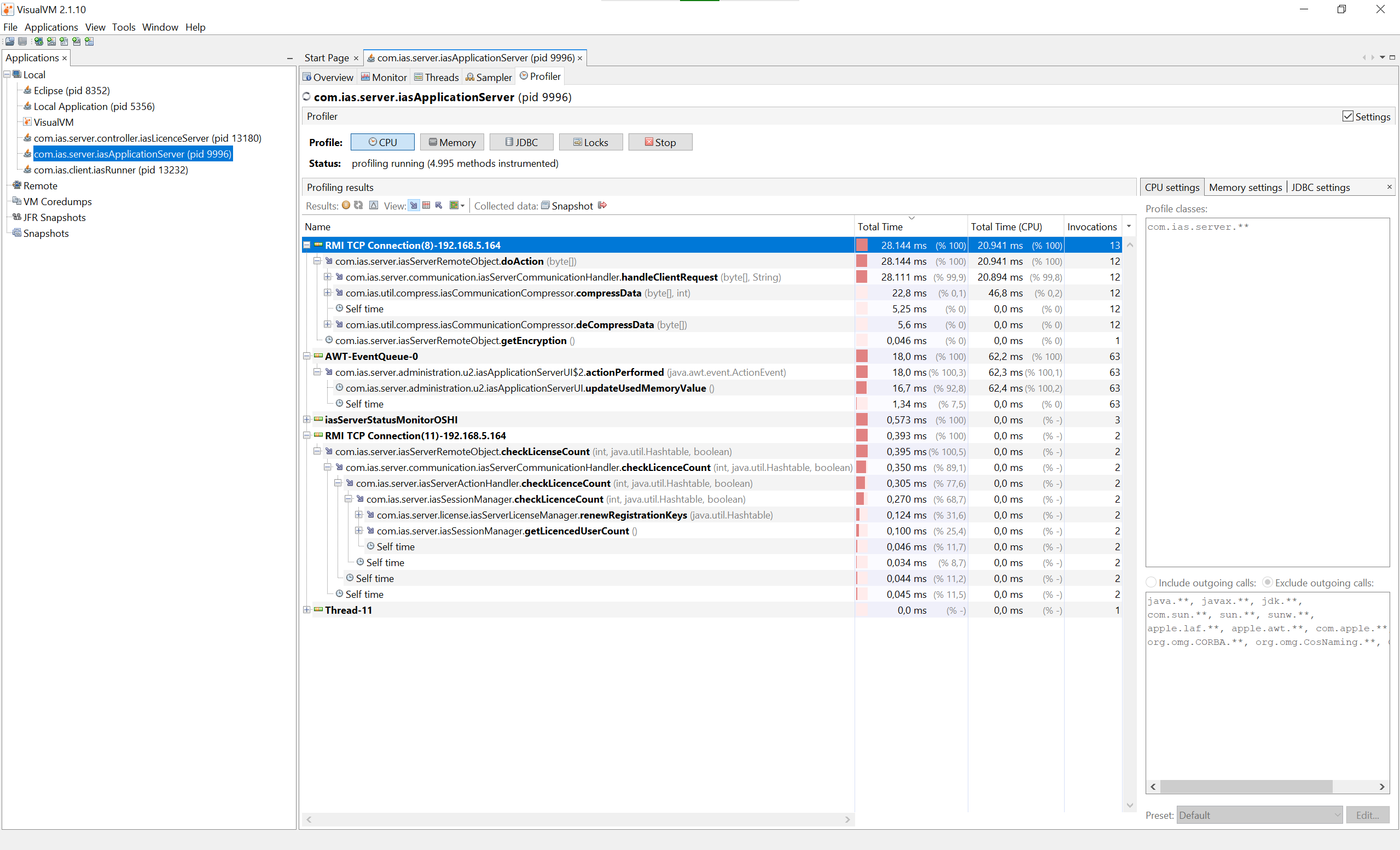

For CPU profiling on VisualVM, you must go to the “Profiling” tab from the main tabs. Here, among the options on the right, a package should be written for the classes that will be the subject of the profiling process. With this option, the data coming from the basic Java libraries and other libraries are exclued.
To start the profiling process, you must press the CPU button on the tab, then data collections starts. After the profiling process begins, you must be trigger some actions on the profiled application in order to collect data. Depending on the configuration, profiling data will begin to accumulate once the actions are triggered.

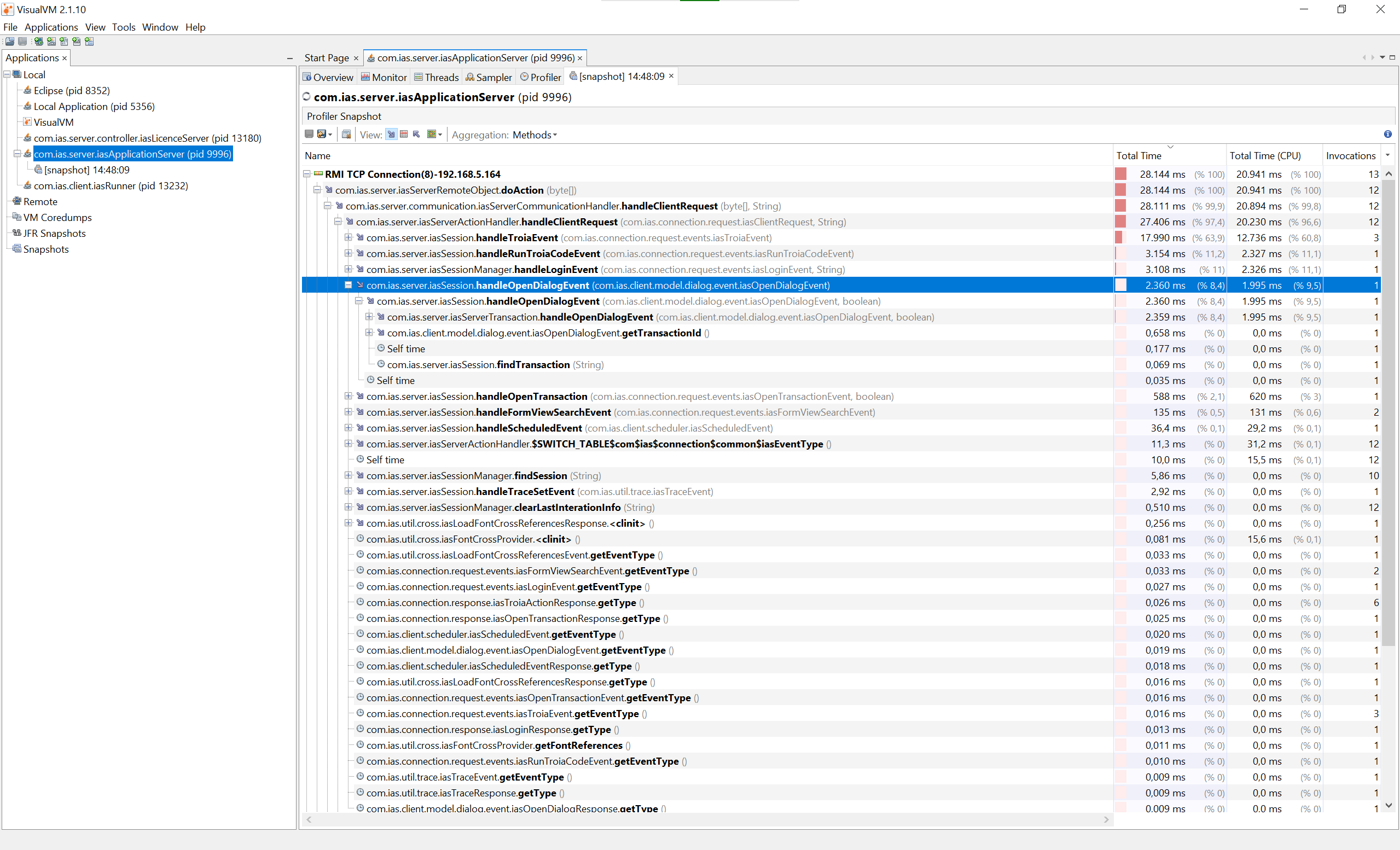

While data is being collected, it is possible to temporarily pause the process or take a snapshot of the data collected up to a certain point, export the snapshots taken, or filter and plot the methods that stand out in the data. Data related to the functions that are run are listed under the threads that those functions are running on. To completely stop the profiling process, you must click the stop button.
If the analyzed JVM is a TROIA Application server, threads starting with the RMI TCP Connection prefix are threads created for the purpose of running processes occurring on the server due to user interaction.
In the CPU Profiling data, the “Invocations” column shows how many times the relevant method was executed, and Total Time (CPU) is the measured/estimated value of the real CPU time. Total Time indicates the total time spent for this method. In other words, if the relevant thread is in the waiting state, it does not consume CPU and this time is not included in the CPU time. These periods include the time of the methods called by this method. “Self Time” shows only the time spent by this method. So the time spent in the methods called by the method is not included in the “Self Time” of the calling method.
In the analyses to be made after the profiling process; the methodology depends on the type of the problem or the nature of the optimization to be made. Therefore, it is not possible to create a recepie that shows how to evaluate the results. However; there are points to be considered during the analysis process. In such analyses, processes carried out with long-term and large-scale data will produce a large amount of profiling data. And this makes the examination difficult. Therefore, according to the nature of the problem planned to be solved, performing analysis on a subset of the problem that is large enough to be analyzed will be beneficial in terms of speed and resources in the process of determining the problem. It would be correct to perform the comparisons to be made during the analysis process with similar system resources. If possible, on the same system, and not to compare different processes with each other in order to achieve effective results.
Memory Profiling¶

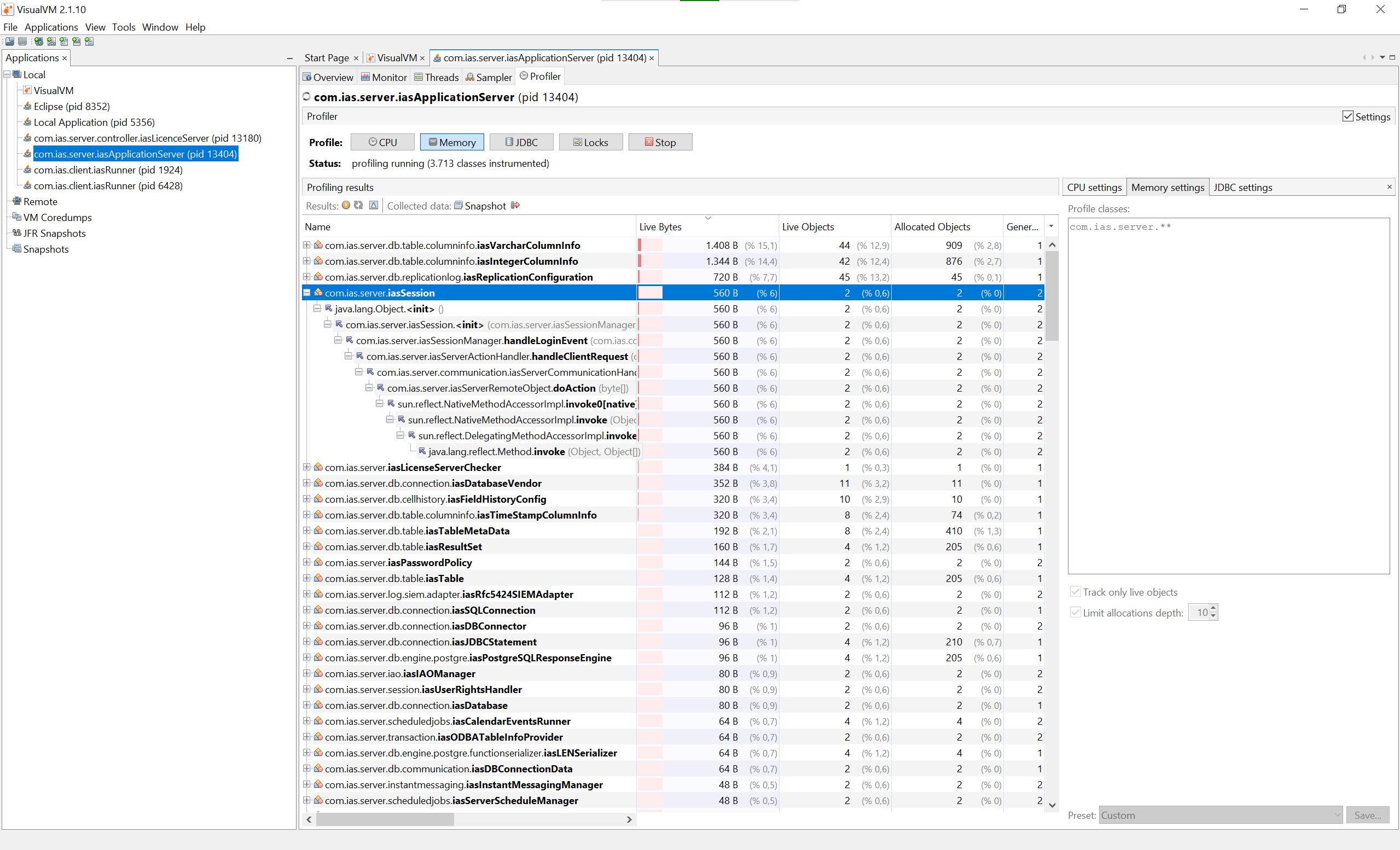

To perform memory profiling, the memory option must be started in the “Profiling” tab. Before starting, it would be useful to enter a restrictive package for the classes that will be subject to the memory profiling process from the “memory settings” section on the right. The most basic package for the TROIA platform can be entered as com.ias.**. This package means that all classes except libraries are monitored.

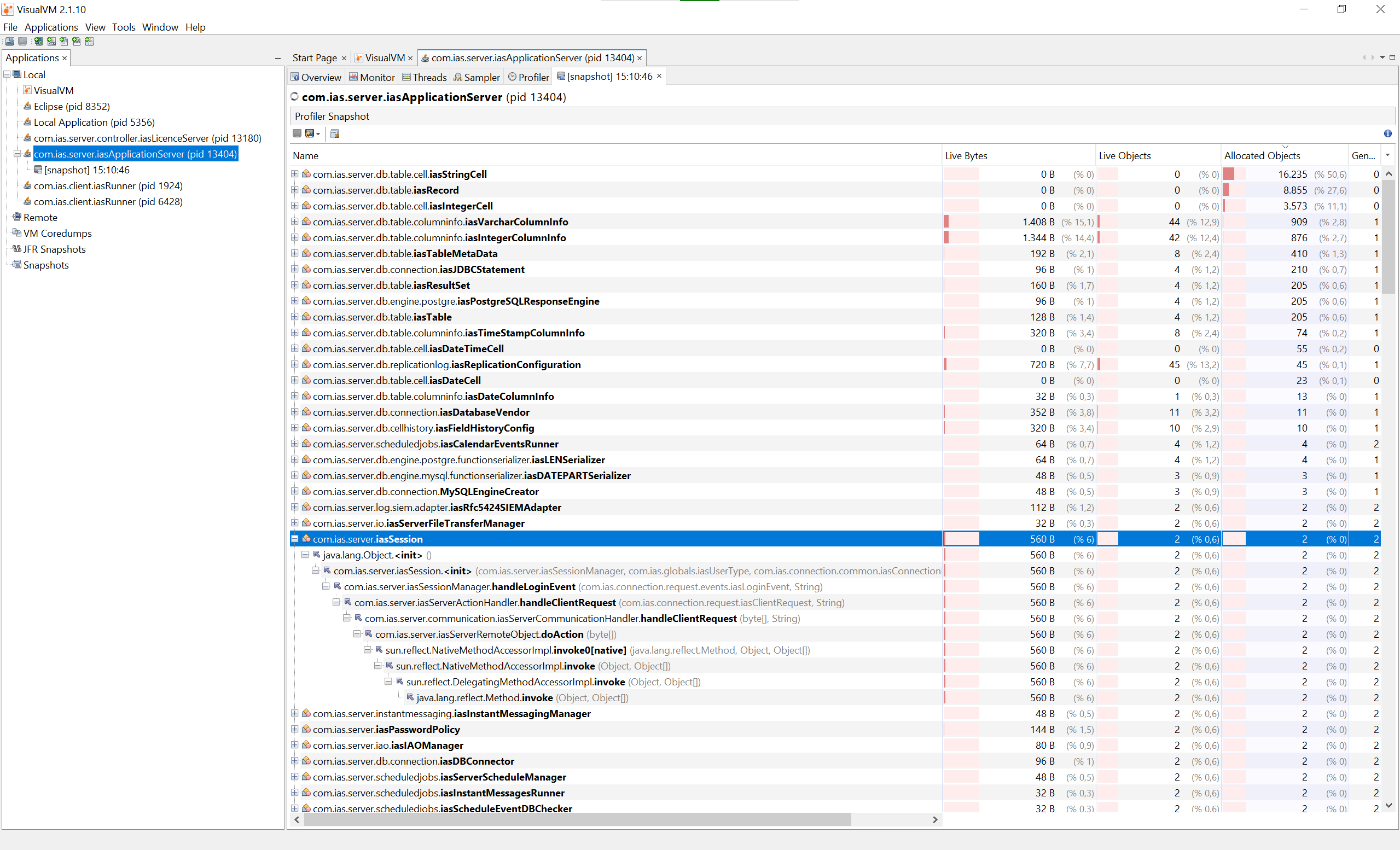

It is also possible to take a snapshot instantly and export this snapshot during the Memory Profiling process. After the Memory Profiling process, the profiling operation should be stopped with the stop button.
The purpose of memory profiling is generally to optimize the memory consumption of the system or to detect possible memory leakage problems. In this context, knowing the profiled application’s memory structure, inter-class relationships and dependencies will be useful for making correct analyses. Additionally, in memory-related analyses, it is extremely important to use structures such as Garbage Collector, which are automatically triggered under normal conditions, carefully during the analysis process. Without GC, the number of some objects in the system that appear may be higher than it should be.
In the TROIA Platform, the memory structure progresses in nested blocks such as application server, session and transaction. Therefore, when an application is closed, there should be no content left in memory other than the cache information related to that application.
